Client :

• Project Management Board for Agricultural and Rural Development Projects in Ba Ria – Vung Tau Province

Location :

• Districts: Châu Đức, Long Điền, Đất Đỏ và Xuyên Mộc in Bà Rịa-Vũng Tàu Province.

Tasks of Works

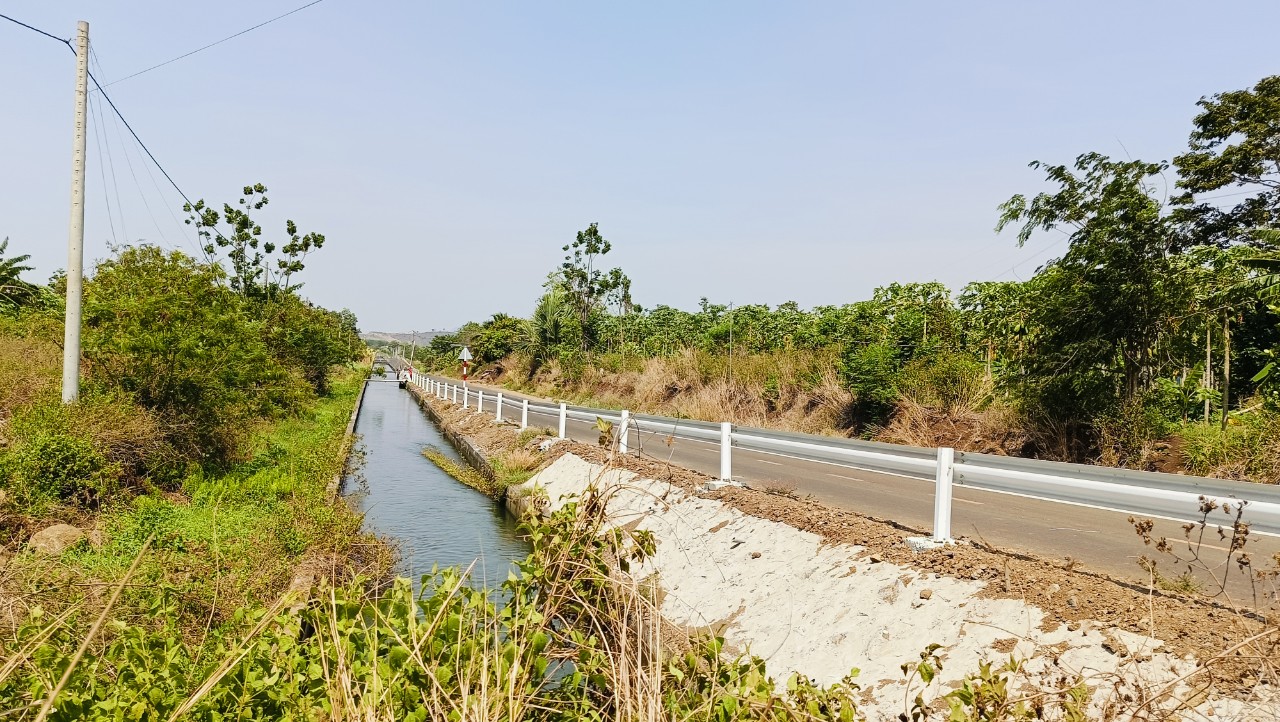

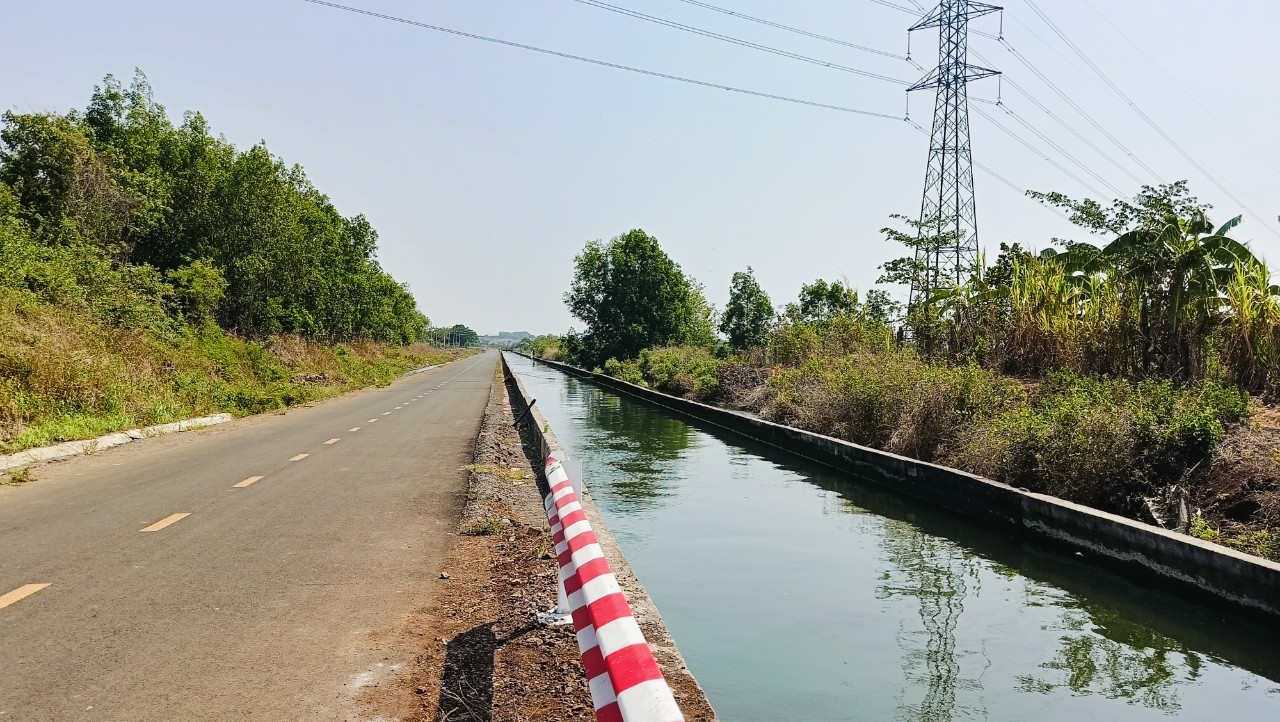

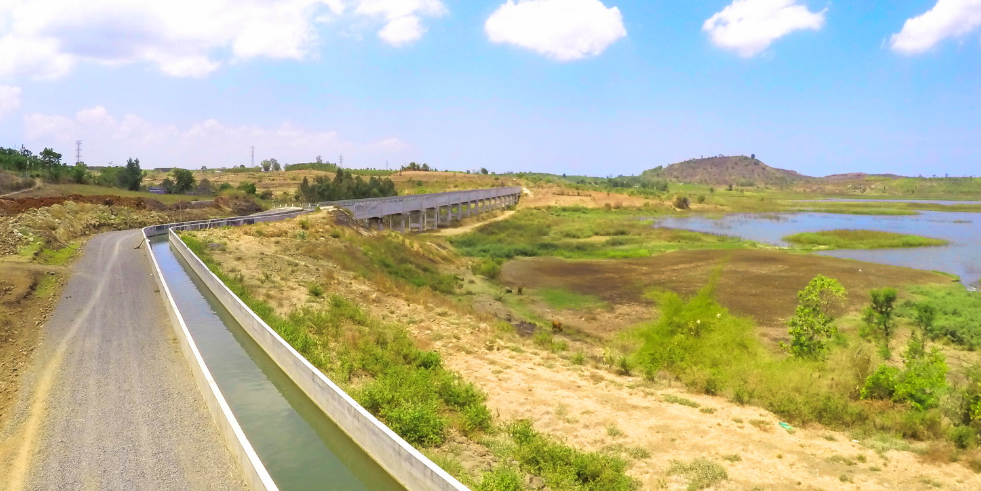

• The project irrigates 9,357 hectares of farmland in the districts of Chau Duc, Long Dien, Dat Do and Xuyen Moc and supplies 535,000 m³/day of domestic water in Ba Ria-Vung Tau province.

Main technical parameters

• Grade of Works :                   Grade III

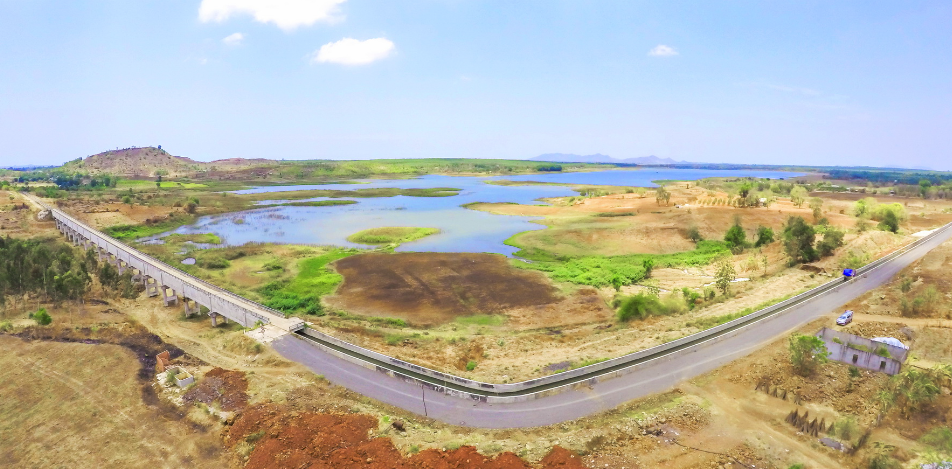

• Reservoir capacity:                          37,2×10⁶ m³
• Dam : Homogeneous earth dam, height of dam Hmax=26.9 m, length of dam 632 m.
• Sluice sill elevation: +38,5 m.
• Water intake: BxH 2(2×3)cm.
• Design discharge through sluice: Q = 15.0 m³/s.
• Spillway width: B spillway= 54,2 m.
• Design discharge through spillway: Q spillway = 210 m³/s.
• Total investment amount/Construction cost: 789 billion VNĐ

Duration :

• Commencement: 2007
• Completion: 2011
