Client:
- Hydraulic Project Investment and Construction Management Board 3
Location:
Thuong Xuan district, Thanh Hoa province
Tasks of Works:
- Creation a stable irrigation water source for 86,862 hectares of farmland, including 54,043 hectares in the Southern Chu River area, 32,831 hectares in the Northern Chu River and Southern Ma River
- Water supply for industry and domestic use with a discharge of 7,715 m3/s.
- Combined power generation with an install capacity of 97 MW, adding an average annual supply to the national grid of about 430 x 106 kWh.
- Water supplement in the dry season for the lowland of Ma River with the discharge of 30.42 m3/s for saltwater push and improving the ecological environment in the lowland area.
- Reduction of flood at frequency of P = 0.6%, ensuring water levels at Xuan Khanh not exceed +13.71 m
Main technical parameters
- Grade of Works: Special grade
- Storage capacity: 1,450 x 106 m³

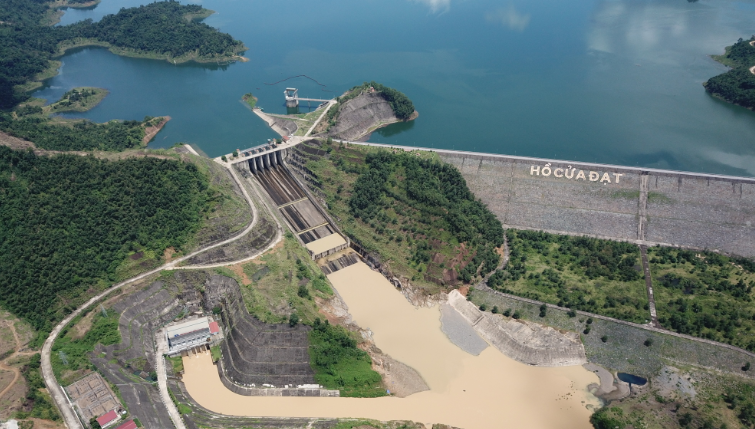

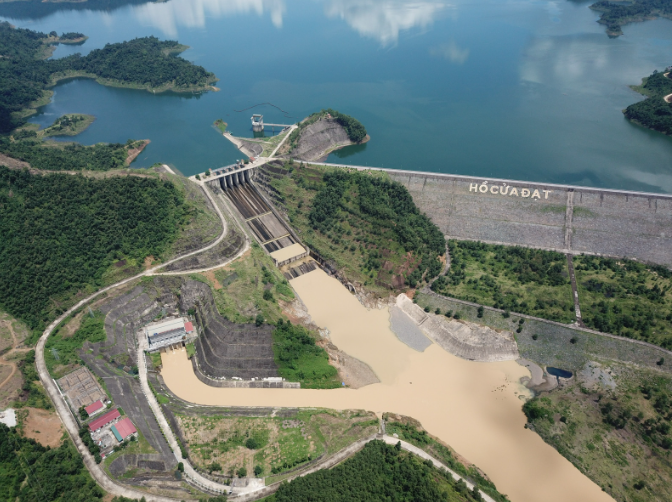

- Main dam: Compacted rockfill dam, concrete slab for surface, height of dam Hmax= 118.5m; length of dam peak L = 740m;

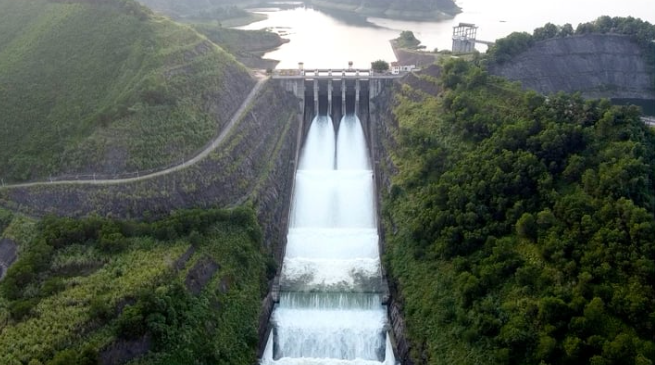

- Flood discharge spillway: dissipated bottom water chute; Number of spillway holds: 05 holds; dimension of gate BxH = 15.0mx16.0m;
- Tunnel: flood discharge in construction combined with operation periods; Tunnel diameter D = 9.0m; Max discharge Q max = 6,607 m³/s;
- Hydroelectric power plant:
- Number of engine groups anh capacity : 02 x 48.5( group x MW)
- Install capacity: 19.5 MW
Total investment amount/Construction cost: 3,323 billion VND (2004)
Contract amount: 10,375,722,000 VND
Duration: 2004 ÷ 2010
- Commencement: February 2, 2004
- Completion: November 27, 2010
