Client:

• Hydraulic Project Investment and Construction Management Board 10

Location:  Vinh Long Province

Objectives and Tasks

• Along with other items in the subproject on water source control and climate change adaptation.
• Control salinity and high tides, creating clean water sources, drainage, and land reclamation for nearly 30,000 hectares of natural land.

Main technical specifications

• Grade of works: grade         II

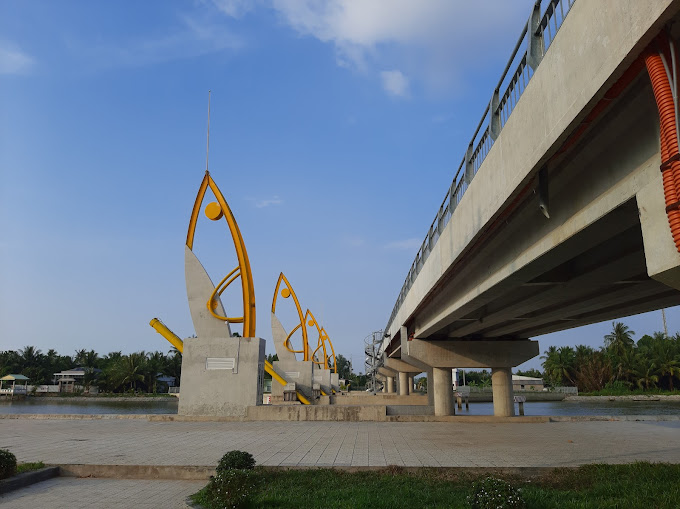

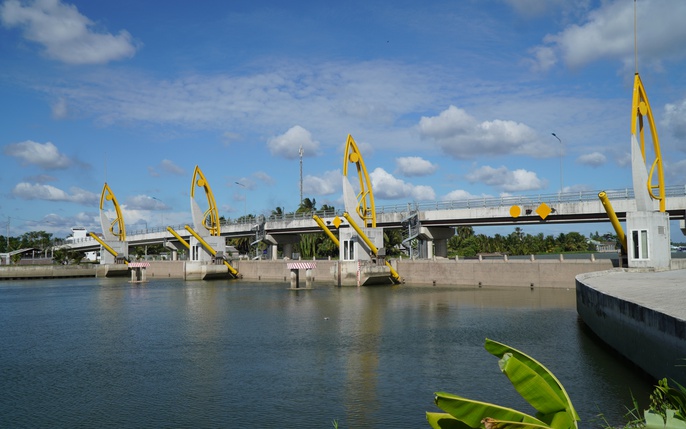

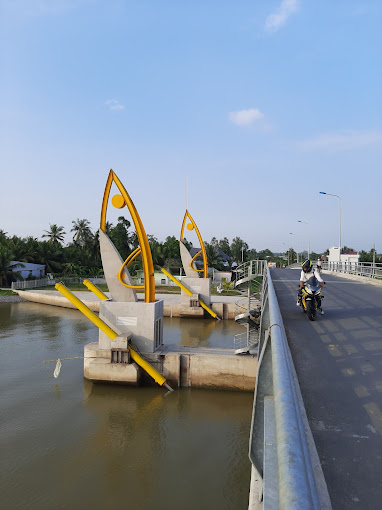

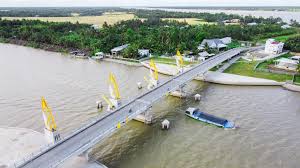

• Sluice: Open type includes 03 independent chambers B=(3×25)=75m
• Clape valve gate operated by the lower shaft

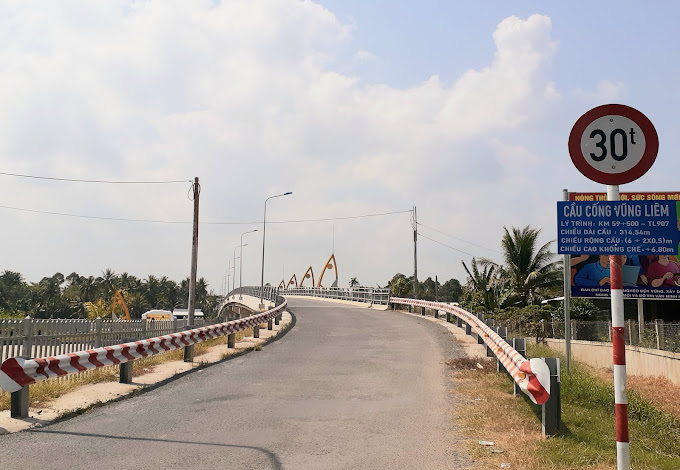

• Traffic bridge with load capacity HL93, B=6m, including 09 spans.
• Embankment of both banks using prestressed reinforced concrete piles SW600B
• Construction methods by Larsen piles IV

Total investment amount/Construction cost: 238 billion VND ( Viet Nam government and WB loan)

Duration: 2018 ÷ 2020
